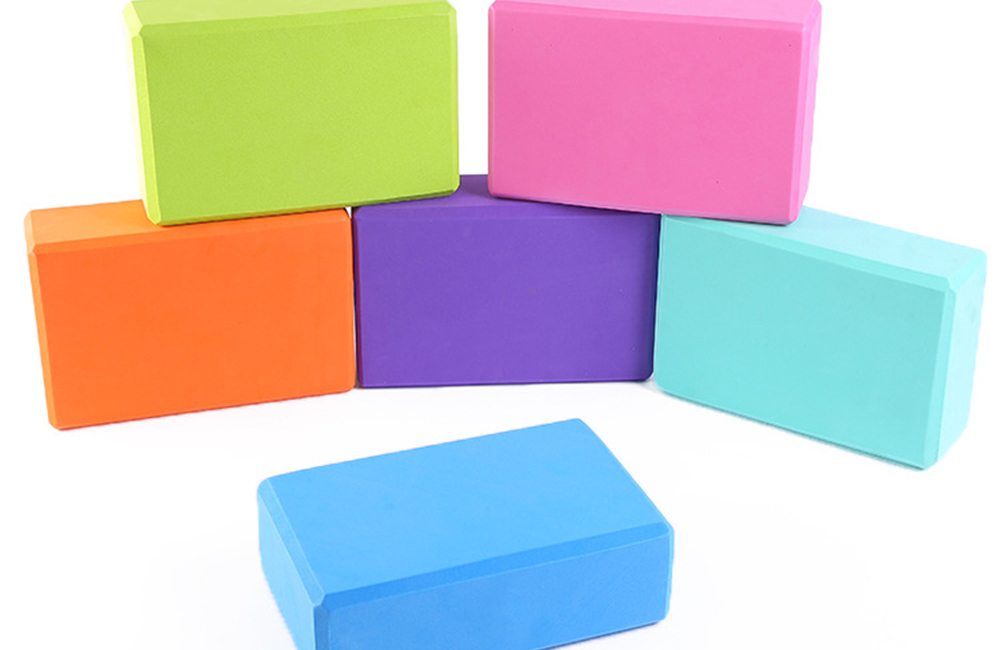

Product: Yoga Block

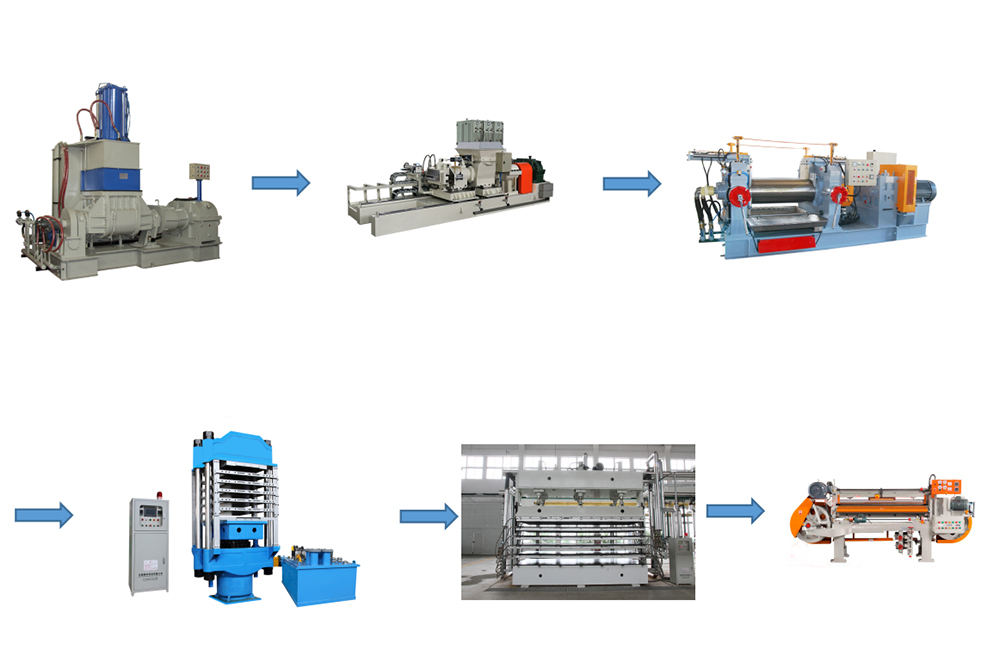

Process:

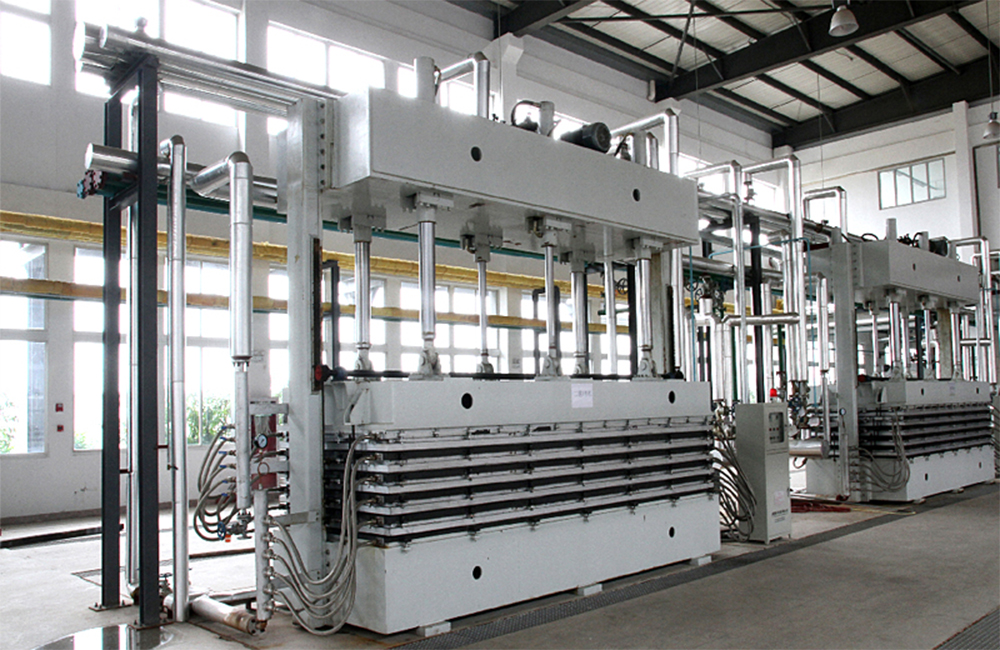

EVA Foaming Press :
1.First Stage 1set
|
Model |
Clamping Force (Tons) |
Platen Size (mm*mm) |
Layers
|
Daylight (mm) |
Distance between Columns (mm) |
Diameter of Piston (mm) |
|
JHF-33B |
1100 |
1350*1700 |
6 |
170 |
1800 |
838 |
2.Second Stage 6 sets
|
Mold Size (mm*mm) |
Layers
|
Daylight (mm) |
|
1000*2000 |
6 |
150 |
Production Capacity:
Block size: 1000*2000*100mm
Working time: 20 hours/day
Capacity: around 72 M3 per day
