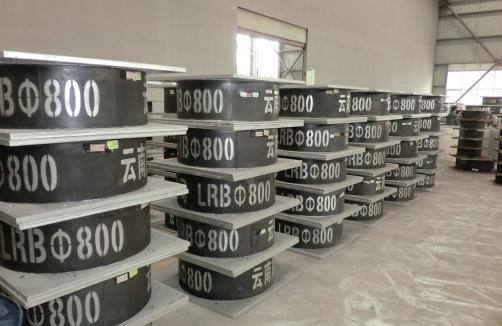

used for different kind of rubber bearing, include bridge bearing and building bearing.
a. Strong structure design, the main parts quality guarantee could be more than 5 years
b. l Uniform temperature control, the temperature difference could be in ±1 ℃
c. l Stable pressure control
d. l Multi-stage pressure and temperature control
3.Specification：
|
Model |
Clamping Force (Tons) |
Platen Size (mm*mm) |
Daylight (mm) |
Diameter of Piston (mm) |
|
XLB-1200X1200 |
500 |
1200X1200 |
350~500 |
Φ600 |
|
XLB-1700X1700 |
1000 |
1700X1700 |
550~800 |
Φ813 |
|
XLB-2200X2200 |
2000 |
2200X2200 |
650~900 |
Φ1100 |
|
XLB-2600X2600 |
3000 |
2600X2600 |
650~900 |
Φ1300 |
※ We could design and manufacture the presses according to customers’ requirements.
4.Options
a. l Temperature control boiler
b. l Auto-Molds
