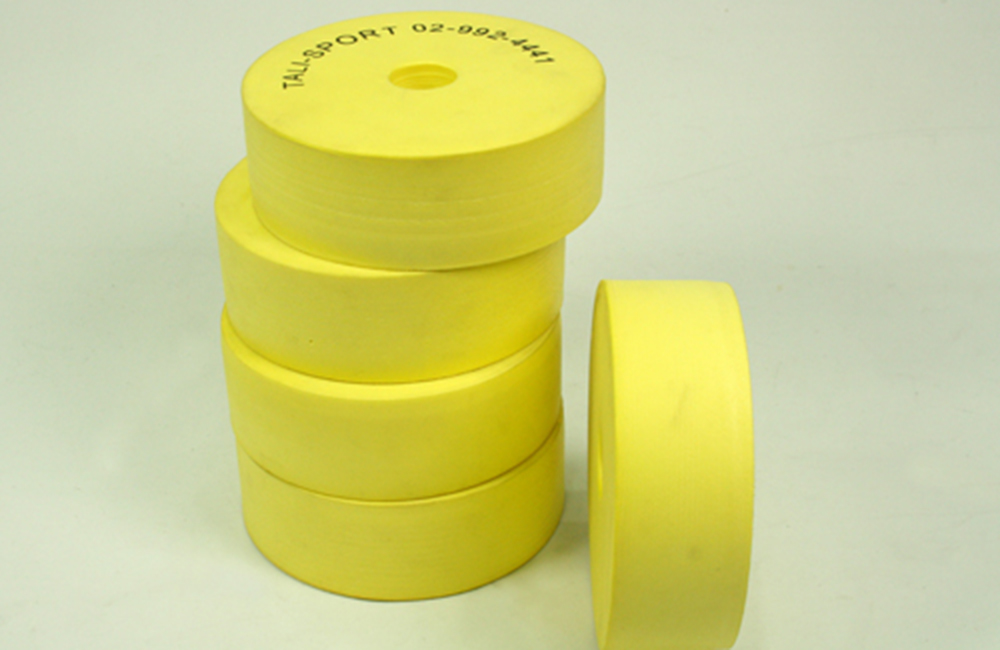

Product: double sizes adhesive tape
Process:

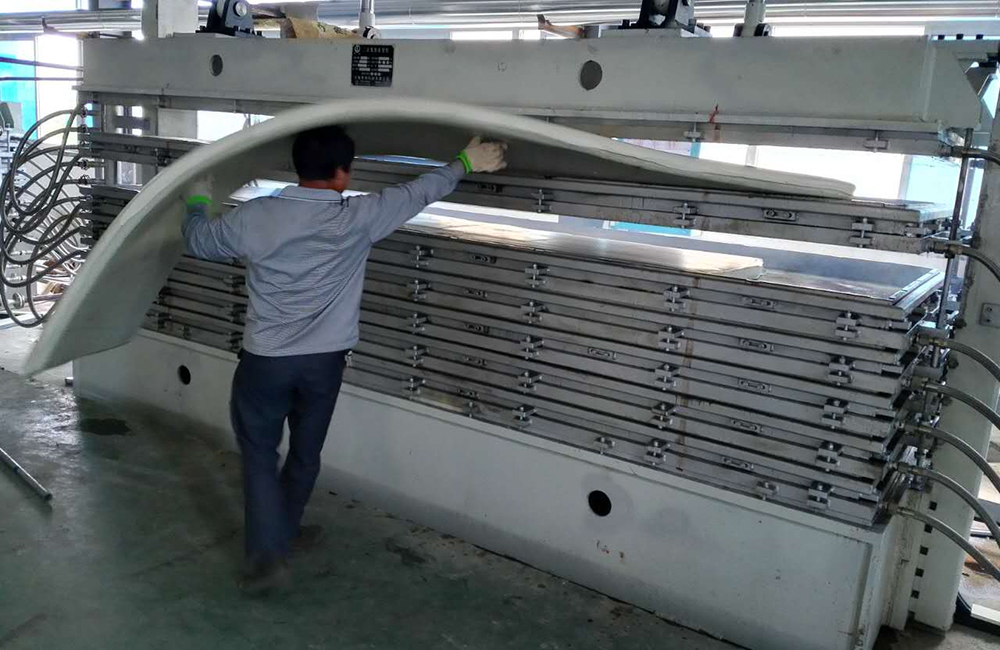

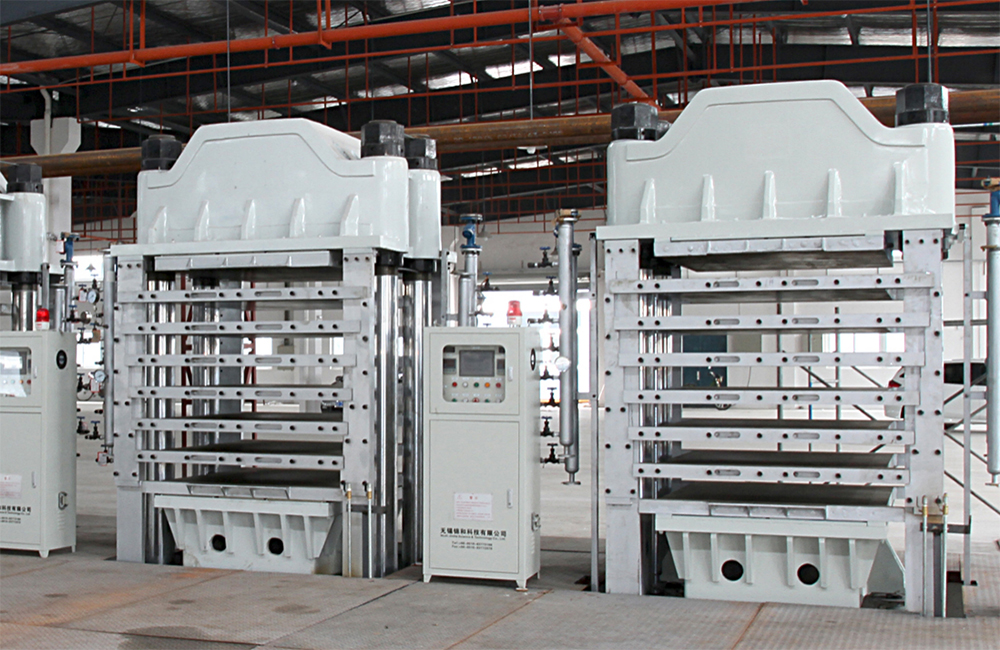

EVA Foaming Press :
1.First Stage 1set
|
Model |
Clamping Force (Tons) |
Platen Size (mm*mm) |
Layers
|
Daylight (mm) |
Distance between Columns (mm) |
Diameter of Piston (mm) |
|
JHF-36 |
1350 |
1350*1800 |
6 |
180 |
1800 |
915 |
2. Second Stage 4 sets
|
Mold Size (mm*mm) |
Layers
|
Daylight (mm) |
|
1600*4200 |
6 |
150 |
Production Capacity:
Sheet size: 1600*4200*95mm
Working time: 20 hours/day
Capacity: around 114 M3 per day with 4 sets of second stage presses
