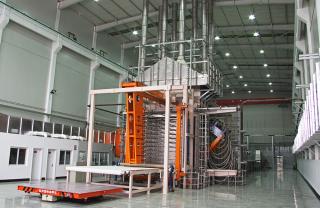

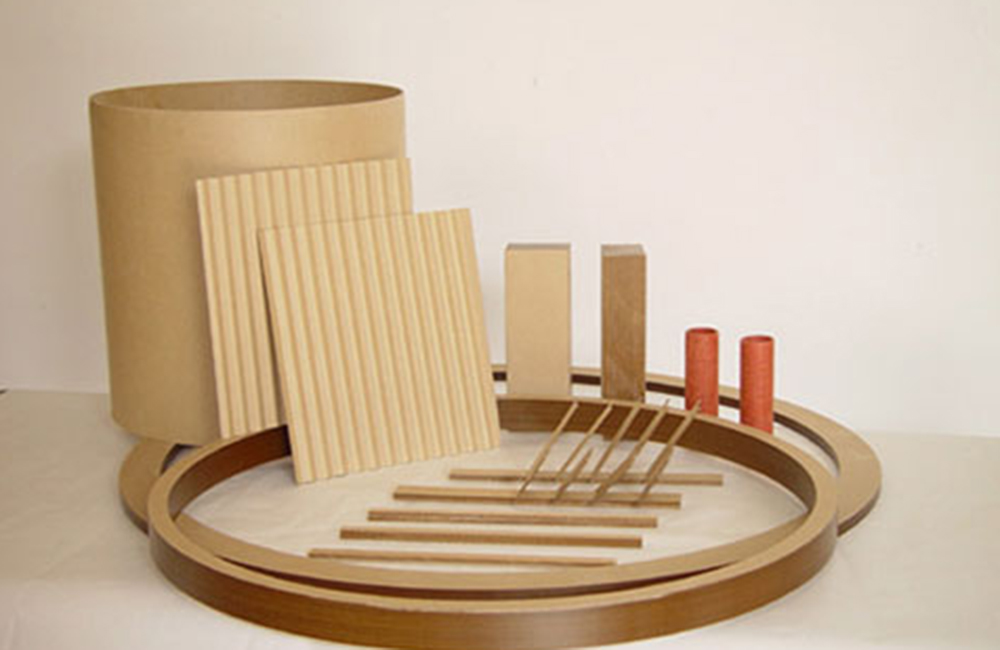

used for molding large transformer insulating materials
a. l Strong structure design, the main parts quality guarantee could be more than 5 years
b. Uniform temperature control, the temperature difference could be in ±1 ℃
c. Stable pressure control
d. Multi-stage pressure and temperature control
3.Specification:
|
Model |
Clamping Force (Tons) |
Platen Size (mm*mm) |
Daylight (mm) |
Qty. of Layers |
|
JHR-600 |
600 |
1200X1200 |
150 |
4 |
|
JHR-1000 |
1000 |
1500X2100 |
150 |
5 |
|
JHR-1500 |
1500 |
1800X2100 |
200 |
5 |
|
JHR-2000 |
2000 |
2200X2500 |
200 |
6 |
|
JHR-3000 |
3000 |
3000X3000 |
200 |
6 |
※ We could design and manufacture the presses according to customers’ requirements.
